Brand Name : LinxuanLaser
Model Number : LX-D12
Certification : CE FDA ISO
Place of Origin : Wuhan,China (Mainland)
MOQ : 1
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 100units per month
Packaging Details : Standard exporting wooden package box
Laser Type : Nd:YAG
Pulse Width : 0.1-20ms
Observation system : CCD camera and red light position
Laser power : 300W
Focal Spot Diameter : 0.1-2.0mm
Power supply : 220V/single phase /50HZ/40A
Dimensions : 920mm*560mm*1220mm
Product introduce
Application

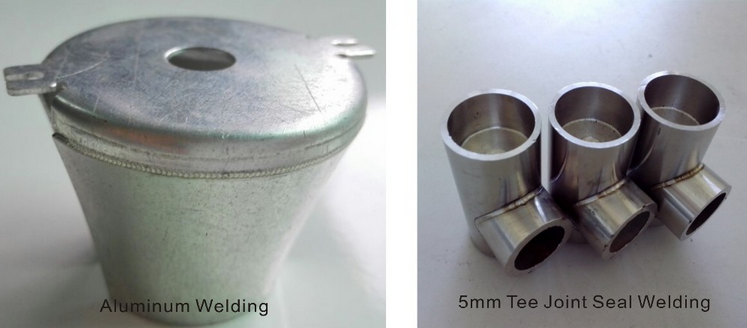

Applied for the welding of various metal letters,
LED illuminated letters,customized metal signage,and exterior billboards.
( Words used in variety of metal loto LED advertising characters metal , like stainless steel , aluminum , titanium ,tin, galvanized sheet ,iron etc .)
Technology specifications
Model | LX-D12 |
Laser max output power | 300w |
Laser work material | Nd:YAG |
Laser wavelength | 1064mm |
Min welding molten pool | 0.1mm |
Welding depth | 1mm |
Pulse width | 0.1-20ms continuous adjustable |
Pulse frequency | 1-100Hz continuous adjustable |
Observation system | CCD camera and red light position |
Total power | ≤9KW |
Power demand | 220V/single phase /50HZ/40A |
Table size | 1000*800mm |
![]() |

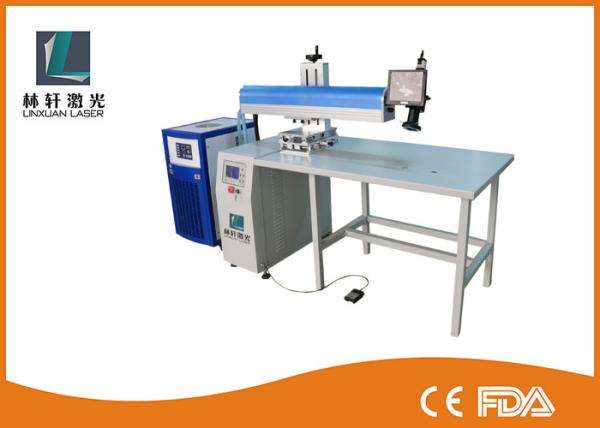

Titanium Aluminum Laser Beam Welding Machine For Auto Metal Tube / Saw Blades Images |
