Aluminum / Iron / Stainless Steel / Gold / Silver Metal Sheet Fiber Laser Marking Machine For Ring Rotary
Advantage:
Compact: The high-tech product, which is combined of laser device, computer, auto controller and precision machinery
High Precision: Re-position precision is 0.002mm
High Speed: Imported scanning system makes the scanning speed is up to 7000mm/s
Easily Operating:Afford the specific marking software based on Windows, which is real-time adjust the laser power and pulse frequency. You can input and output by computer according to edit in the both of the specific marking software and the graphic software such as AutoCAD, CorelDRAW and Photoshop.
Energy Saving: The efficiency of optic-electrical converting is up to 30%
Low Running Cost: No wearing part. Free maintaining

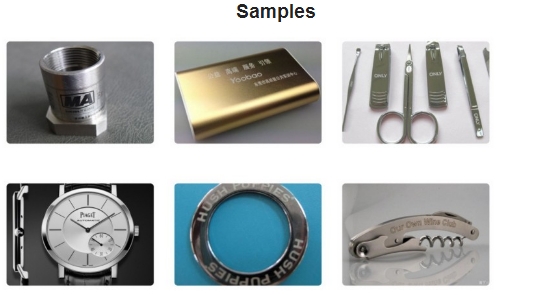

Sample photo show :
Electronics and commounication tools,IC chips,computer accessories and electrical appliances, all kinds of precise components, hardware tools, instrument and meter,aaerospace devices, jewelry, clocks, gifts, office supplies, trademark signs, sanitary ware, table ware, food, beverages, tobacco and alcohol and many other industries for marking logos, symbols, words, and also can be used in production line for mass quantities work.
Technical data
| Mode of operation | Pulsed |
| Polarization | random |
| Q-switched operation |
| Output power adjustment range | 10%-100% |
| Nominal average output power W | 10W / 20W / 30W / 50W |
| Central emission wavelength | 1060-1070 nm |
| Emission Bandwidth (FWHM) | <10 nm |
| Long-term average power instability | <5% |
| Pulse width, (FWHM) | 100 ns |
| Laser switching ON time | 180 μsec |
| Laser switching OFF time | 180 μsec |
| Pulse Repetition Rate* kHz | 20-80 kHz |
| Energy per pulse (PRR = 20 kHz) | 0.95 mJ |
| Typical beam quality, M2 | <1.8 |
| Output fiber delivery length | 3m |
| Operating voltage | 220V |
Our after- sale service: 2 years warranty for whole machine.
We will enclose an "Instruction Book", "Operation Manual" and "Training Video" (in English version) to you, which is easily understood and handle by the customer.
Delivery Time
5-7 working days after receive the payment.
Package
plywood case.
Transportation Mode
Fiber laser marking machine would be shipped by ocean transportation, air transportation or by express.
About us
Wuhan Linxuan Laser Co., Ltd is a high-tech enterprise in Wuhan East Lake Development Zone , we are specializing in producing,developing and selling laser marking machine,laser welding machine,laser cutting machine,etc.It is Chinese industrial laser processing equipment pioneer ,domestic well-known marking equipment manufacturer.And,with rich experience ,we also have obtained huge success in international market ,the mainly foreign markets are United States, Germany, Spain, Russia, Singapore, Indonesia...more than 30 countries and regions .Till now, a lot of customers all over the world have visited us.
