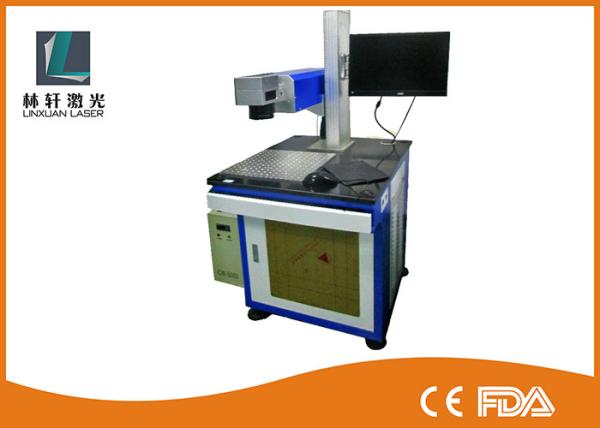

High Precision Printer Laser UV Laser Marking For Plastic Bottle Filling Line
Application
1. Automobile and motorcycle spare parts, auto glass, instrument appliance, optical device, aerospace, military industry products, hardware machinery, tools, measuring tools, cutting tools, sanitary ware.
2. Pharmaceutical, food, beverage and cosmetics industry.
3. Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting or engraving, clocks and watches and glasses.
4. It can be marked on polymer material, majority of the metal and non-metallic materials for surface processing and coating film processing, pervious to light polymer materials, plastic, fire prevention materials etc.
Product Advantage
1. Higher pulse stability, namely better pulse consistency of laser produces the same carving effect, so it’s very suitable for precision marking. Higher pulse repetition frequency meets the need of quick marking and high production efficiency.
2. High efficiency of the photoelectric conversion and long service life.
3. Automatic in a rotary table (optional item), convenient feeding, fast speed, high efficiency.
4. The mark is of environmental protection, comply with RoHS standard.
Specifications
| Model | LX-C1-1W/3W/5W | LX-C1-7W/10W |
| Laser type/wave length | 355nm |
| Laser output power | 1W/3W/5W | 7W/10W |
| Beam quality㎡ | <1.1 | <1.3 |
| Marking speed | 70000mm/S | 70000mm/S |
| Repeated accuracy | ±0.001mm |
| Working area | 110×110mm or 175×175mm ( adjustable ) |
| Machine power | 800W | 1200W |
| Power supply | 220V/50-60Hz |
| Minimum character | 0.1mm |
| Minimum line width | 0.015mm |
| Life of the laser machine | ﹥100,000 hours |
| Cooling system | Diode Cooling / Air Cooling |
| Control interface | Standard USB |
| Overall dimensions | 900mm×680mm×1200mm |
Description
UV Laser is the flagship products of Leiling Company,355nm UV laser has a very small focusing spot and processing of heat affected zone is very small,and so it is mainly applied on ultra fine marking and marking and engraving on special material.
Product Features
1. Adopt quality parts such imported UV laser source ,good quality parts
2. Professional industrial experience more than 10 years.
3. Fast delivery time: 7 -10 days .
4. Optional shiping way: Express, by air or by sea .
5. Have good reputation from customers.

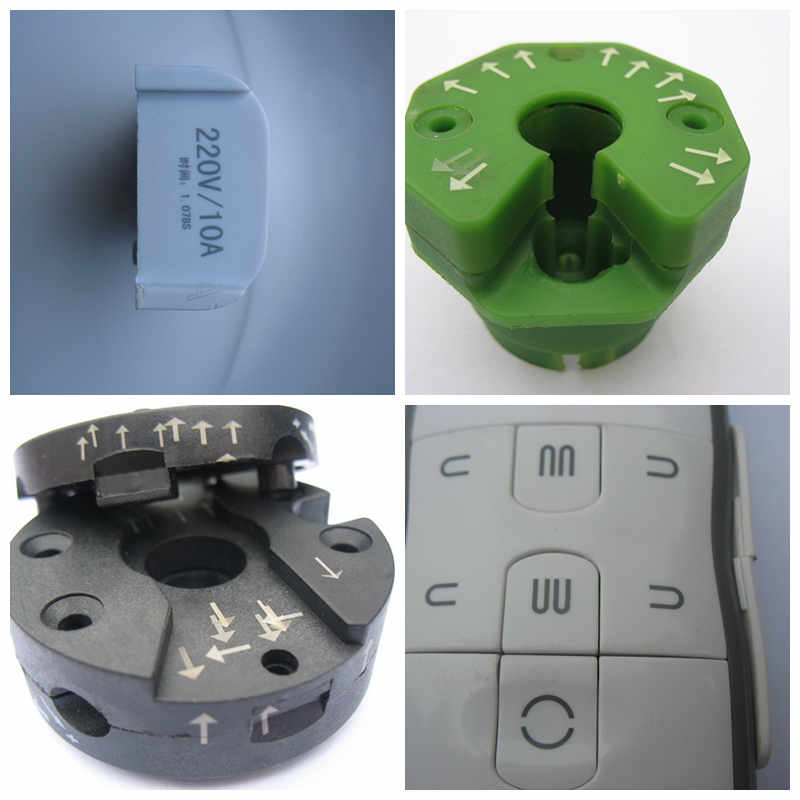

Sample show
Packaging & Delivery
1. Prompt delivery at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:permanent technical support for machine lifetime
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
