10W 30W High Precision SYNRAD Laser Source Co2 Laser Marking Machine
Description
LINXUAN LASER’s CO2 Laser Marking Machine is special design for marking non-metallic materials.
It’s widely used in the field of garment & shoes engraving, fabric cutting, medical packaging, handicrafts & gift, food printing, soft drink printing, cigarette code, beverage packaging tobacco printing, rubber items, leather engraving industries.
It takes CO2 laser tube as the laser source, using American made SYNRAD CO2 laser source, and can work 30,000~40,000 hours free of maintenance, suitable for users requiring batch production and high marking precision.
Product Features
1. LINXUAN LASER’s CO2 Laser Marking Machine equips with the most advanced metal SYNRAD CO2 laser source, can be refilled with CO2 gas, no need to change consumables, exempt-maintenance and long life time.
2. With high-rate of photoelectric conversion and SYNRAD metal tube, the laser beam mode is much better than common machine with glass laser tube, and the high accuracy marking effect is what common CO2 laser marker can not achieve.
3. With multifunctional marking software, the machine can be collocated with ital-controlled rotary accessory, automatic fixture, and production line.
Application
Jeans marking, Shoes Leather Engraving, nylon marking, ABS/PVC/PC board marking, plastics marking, rubber marking, resin marking, medicine box marking, ceramic marking, fabrics marking, leather marking, etc.
In the industries of garment engraving and cutting, fabric cutting, medical packaging, handicrafts & gift, building ceramics, beverage packaging tobacco packaging rubber items, nameplate casing, electronic components, leather and other industries.
Specifications
| Machine Type | co2 laser marking machine |
| Laser Type | American SYNRAD or RF laser source |
| Laser output power | 10W | 30W | 60W |
| Laser tube life time | 30000-40000 hours |
| Applicable materials | Non-Metallic Materials |
| Standard Working area | 110mm*110mm |
| Optional Working area | 70mm*70mm, 140mm*140mm, 175mm*175mm |
| Marking depth | 0.01mm-0.3mm |
| Maximum marking speed | 7000mm/s |
| Laser wavelength | 10.64um |
| Minimum Line Width | 0.015mm |
| Repetition Accuracy | ±0.01mm |
| Power Supply | 220/110V(50HZ/60HZ) |
| Machine power consumption | 300W/1.2KW/2KW |
Marking Samples

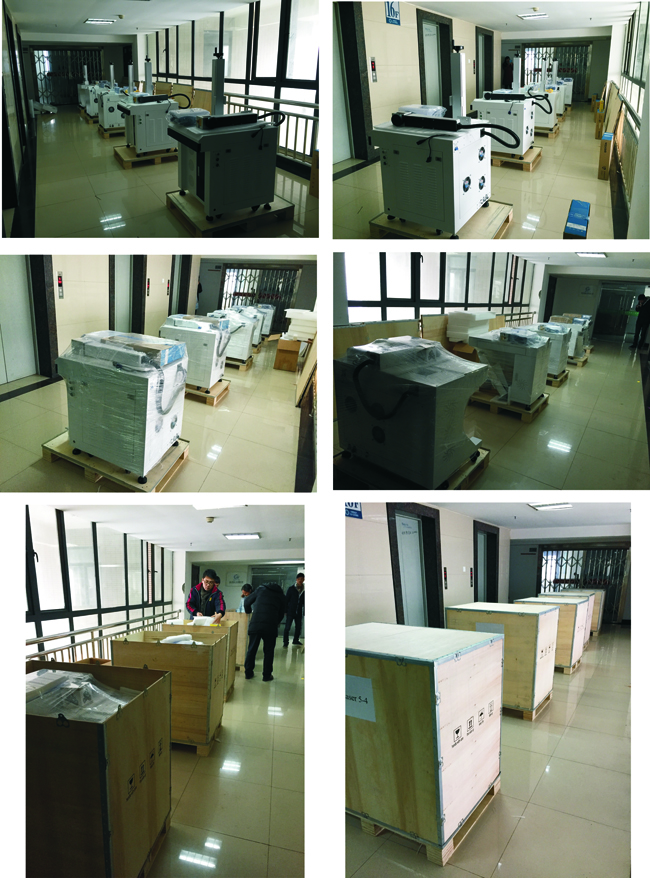

Packaging and delivery
1. Machine package with wooden case.
2. Delivery can be by air, by sea and by DHL express.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
